SRPNT X3 13kw **EARLY AUGUST ARRIVAL**
SRPNT X3 13kw **EARLY AUGUST ARRIVAL**

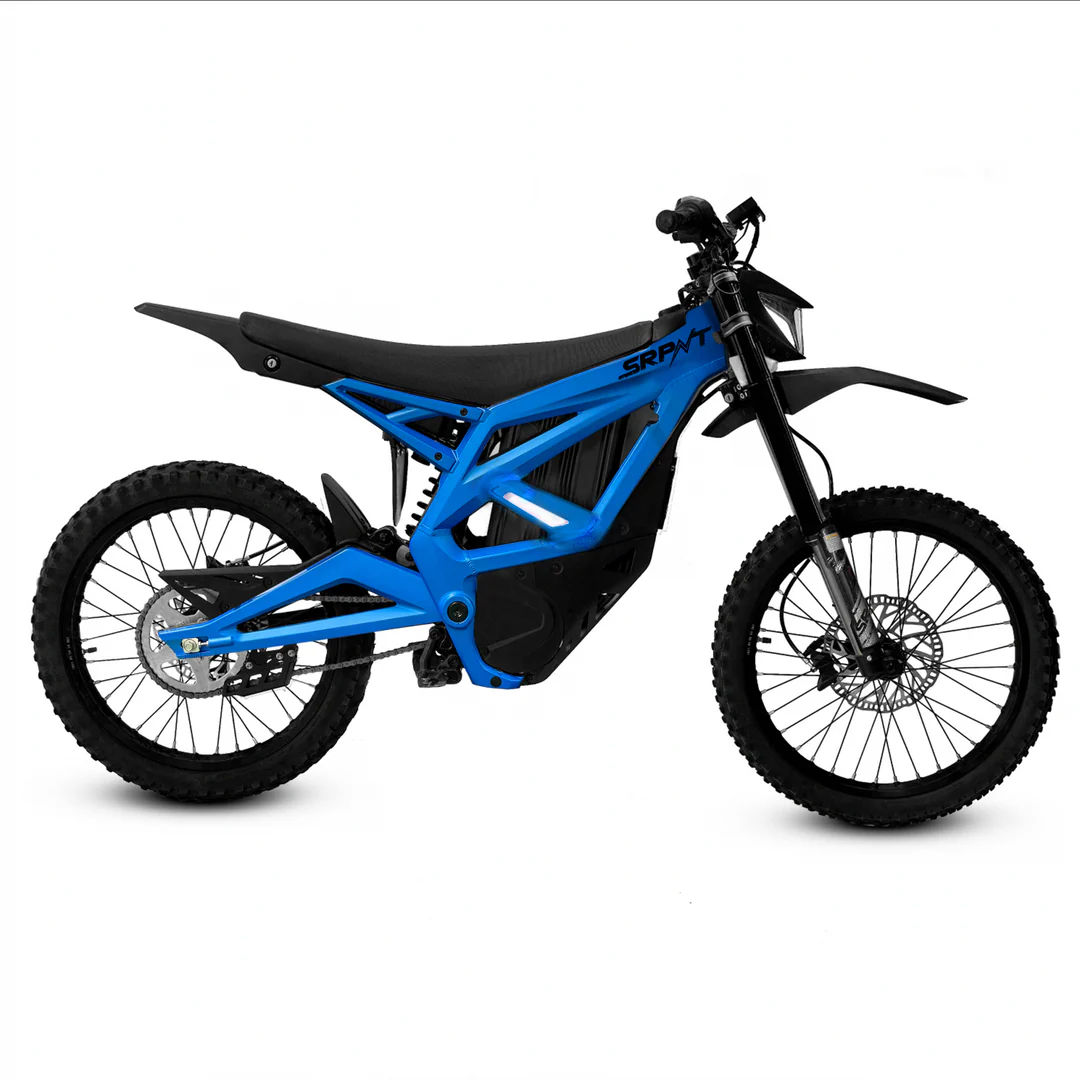

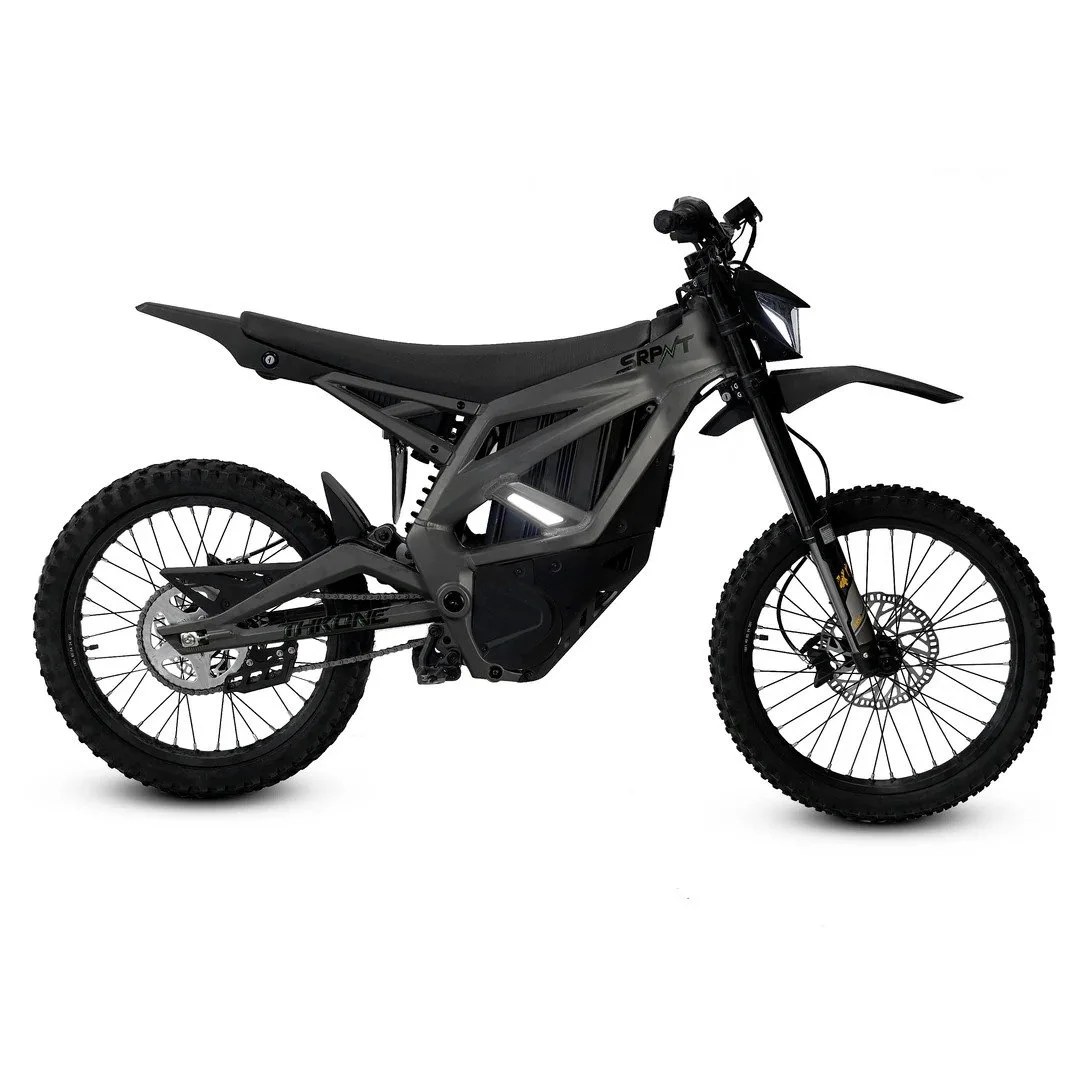

We're thrilled to unveil the culmination of two years of dedicated research, design, and hard work!!: Introducing the all-new X3 - e-DIRT BIKE powered by Throne Cycles! Experience the electrifying power of 72 volts and 13,000 watts of pure power! A custom alloy frame crafted under 3000 lbs. of pressure, this bike promises an unparalleled adventure.
Safety is always paramount, which is why it has two integrated kill switches and strategically placed lights for enhanced visibility, ensuring your rides are as safe as they are thrilling. Whether you're navigating rugged terrain or enjoying off-road trails, the X3 - e-DIRT BIKE delivers unmatched performance and excitement.
New Industry levels! Embrace the thrill and be among the first to pre-order* your own. However, please note that while this bike offers unparalleled excitement, it's important to remember that it's not street-legal. Prepare to elevate your off-road experience like never before with the X3 - e-DIRT BIKE.
MOTOR
Type: PMSM
Mounting Position: Mid
Weight / Diameter: 9.55kg / 155mm
Axial Length: 130mm
Peak Efficiency: 98%
Cooling Method: Air-Cooled
CONTROLLER
Type: FOC
Dimensions: 160mm x 142mm x 79mm
Peak Efficiency: 98.5%
Power Modes: Eco, High, Sport
MOTOR POWER SYSTEM
Rated Voltage: 72V (DC)
Rated Torque / Peak Torque: 95Nm / 115Nm
Shaft Output Torque @ 1000RPM: 460Nm
Rated Rotation Speed: 5400rpm
Peak Efficiency: 97%
Efficiency Range (≥80%): 3Nm – 45Nm
TRANSMISSION
Gear Ratio: 13:51
Drive System: Motorcycle Chain & 428 Drive Chain
Model: German Continental Brand, 8M CXA
ELECTRICAL COMPONENTS
Horn: CQC
Battery: 72V 40Ah Lithium (176 LG Cells)
Battery Life Cycle: 500 Cycles
Battery Display: Integrated LCD
Charger: 9A
Charging Time: 3.5 Hours
USB Port: Type-C

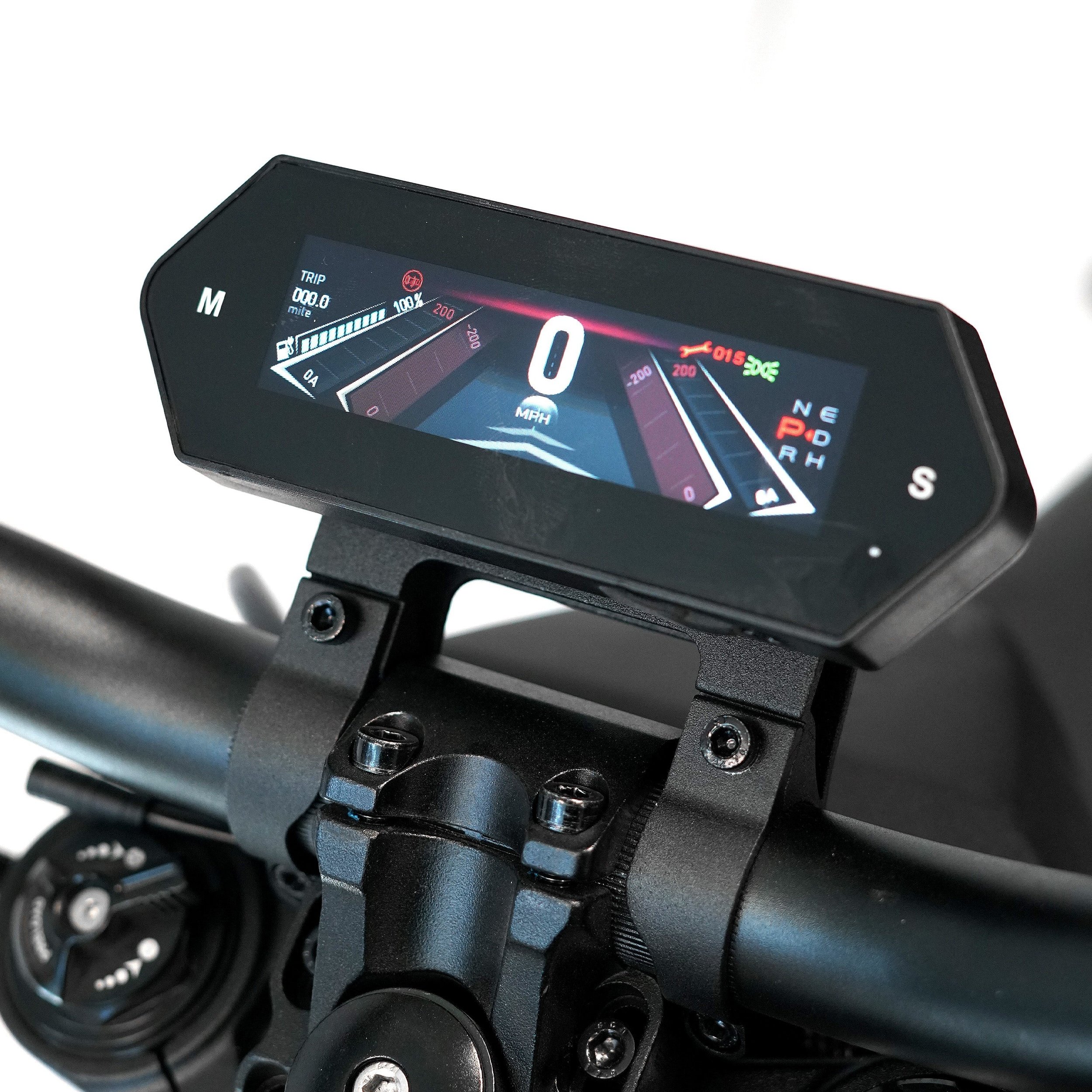

Speedometer: TFT
Lighting: LED Headlight & Rear Light
FRAME & SUSPENSION
Chassis Material: No.6061 T4&T6 Aluminum
Construction: Forged under 3000 Tons of Pressure
Surface Finish: Baked Paint
Front Suspension: Inverted Fork (200mm Travel)
Rear Suspension: KKE Suspension Link System
Wheel Type & Size:
Front: 1.4-19 Alloy Hub
Rear: 1.6-19 Alloy Hub
DIMENSIONS
Ground Clearance: 270mm
Wheelbase: 1250mm
Seat Height: 85cm
Vehicle Dimensions: 1880mm x 805mm x 1130mm
DRIVE & CAPACITY
Top Speed: 90km/h
Net Weight: 73kg
Rear Sprocket: 51T
Side Stand: Yes, with Kill Switch
Battery Usage Limit: 600 Uses
Maximum Carrying Capacity: 320 lbs
