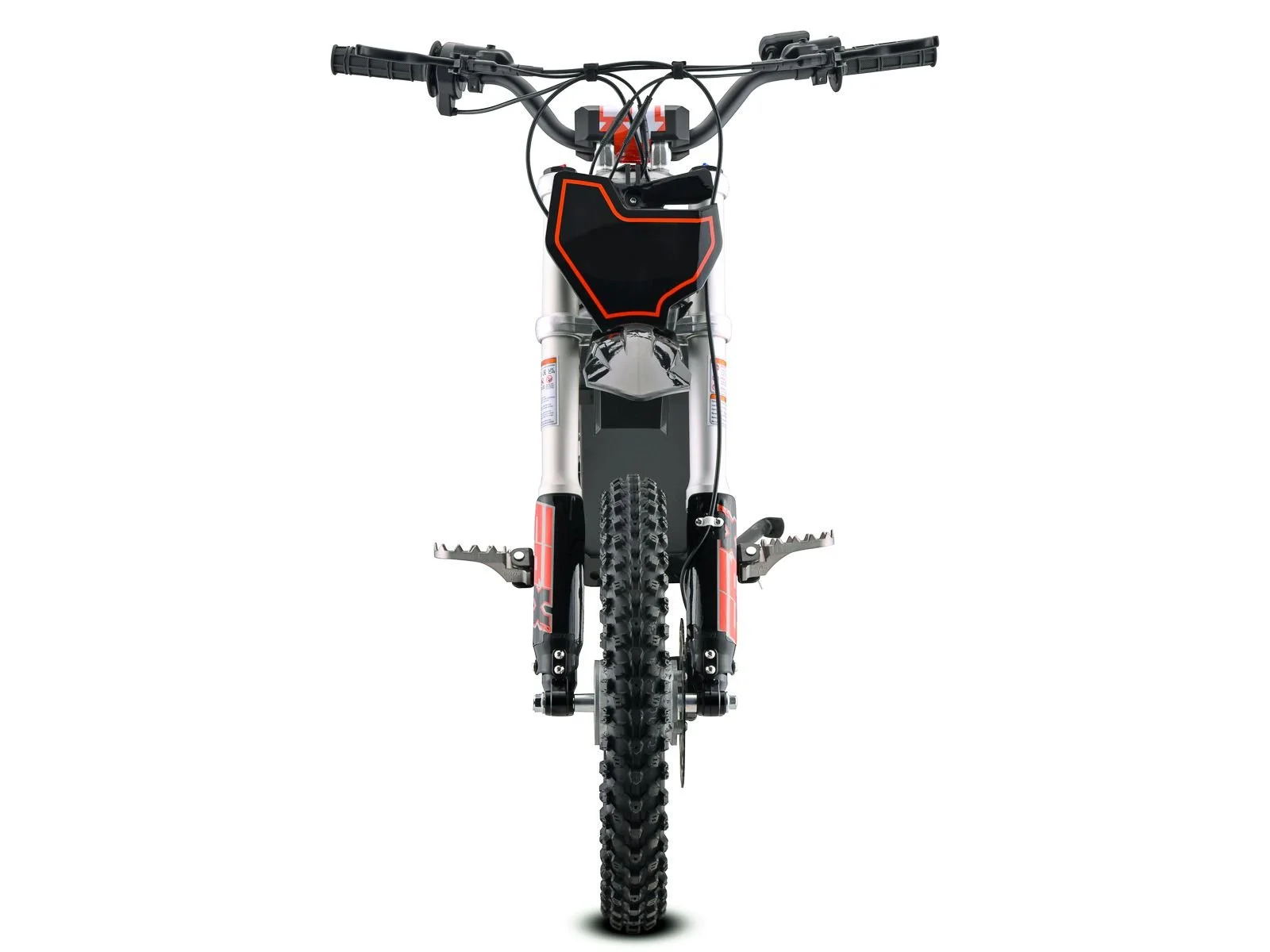

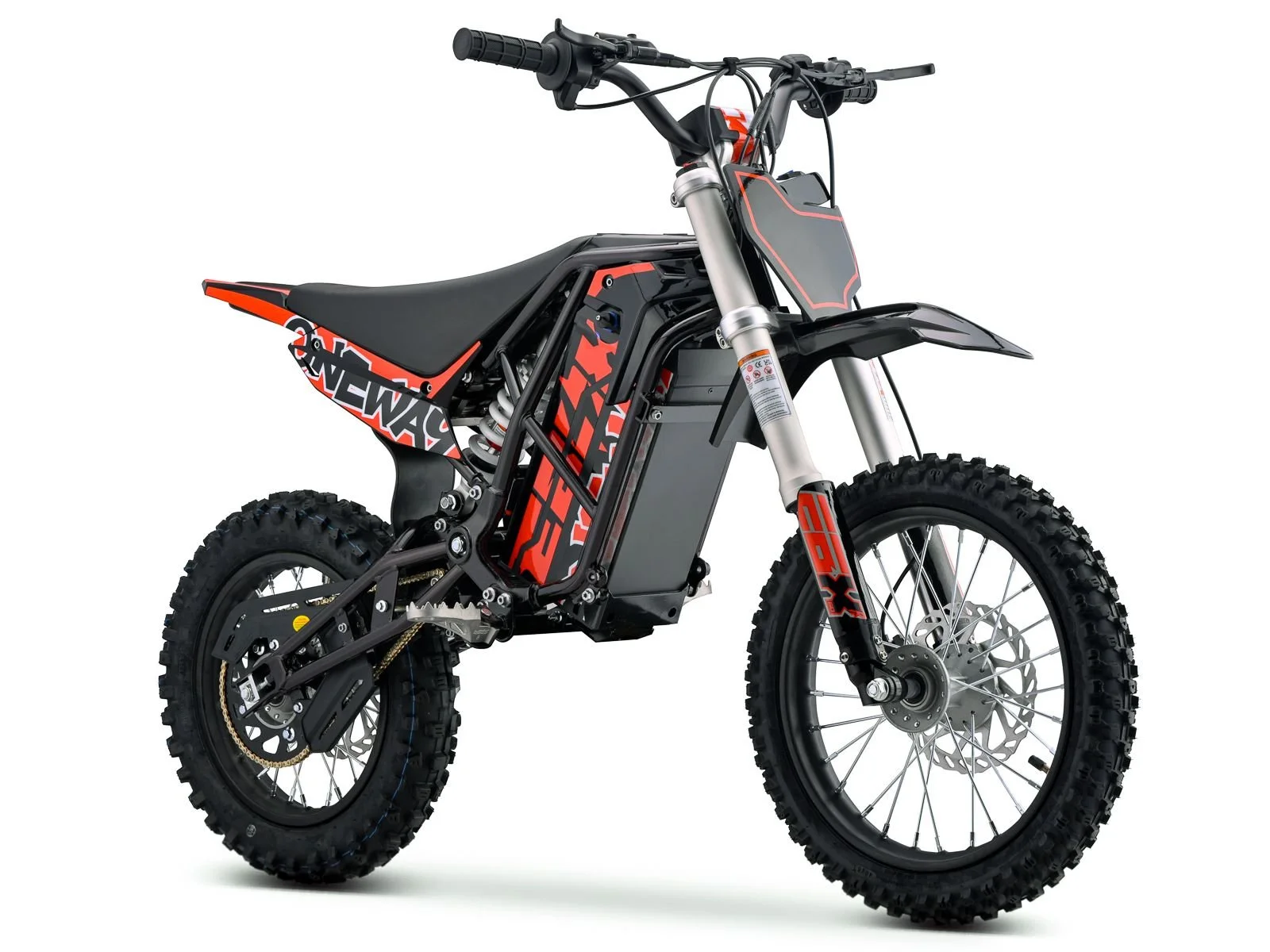

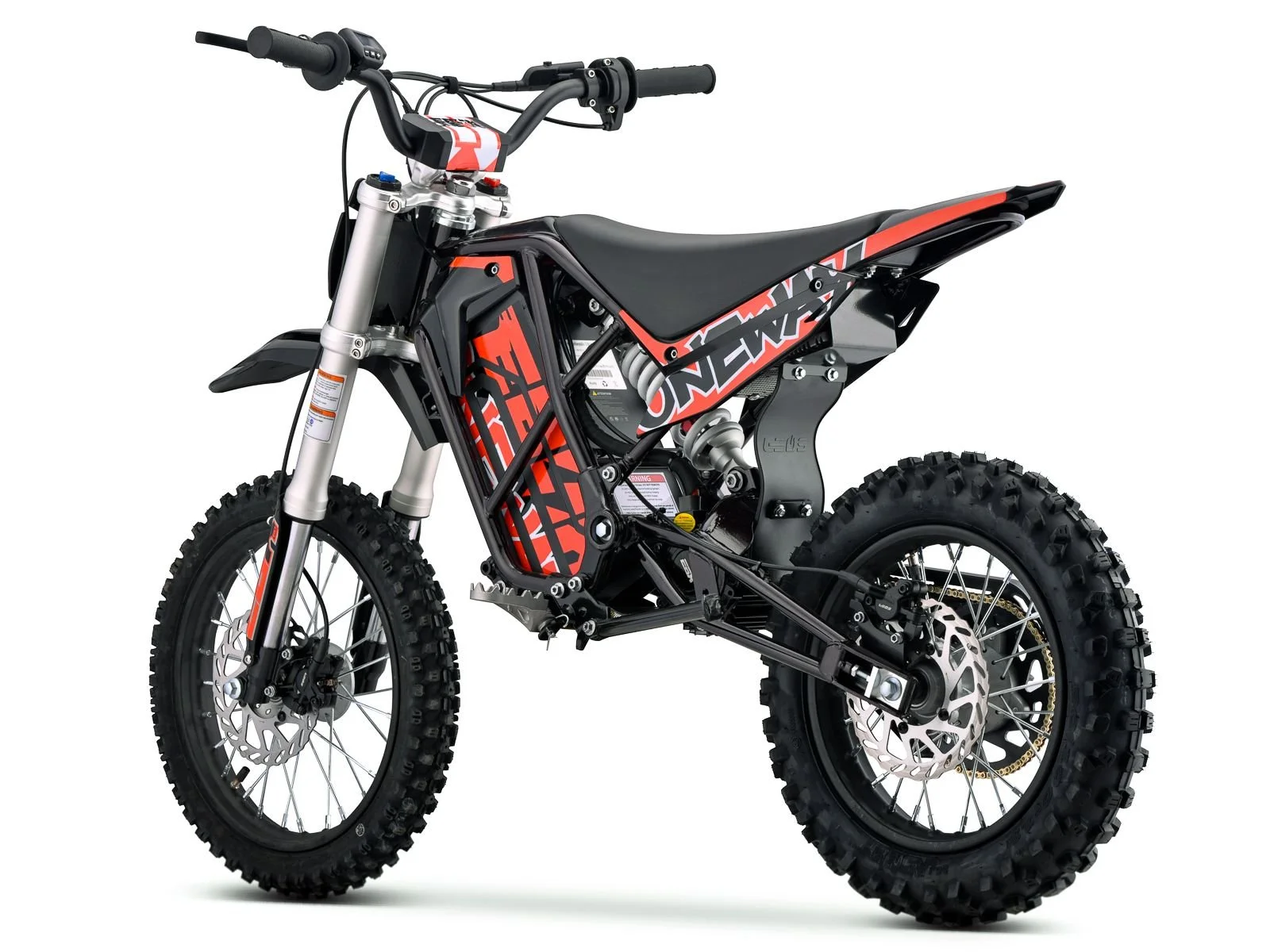

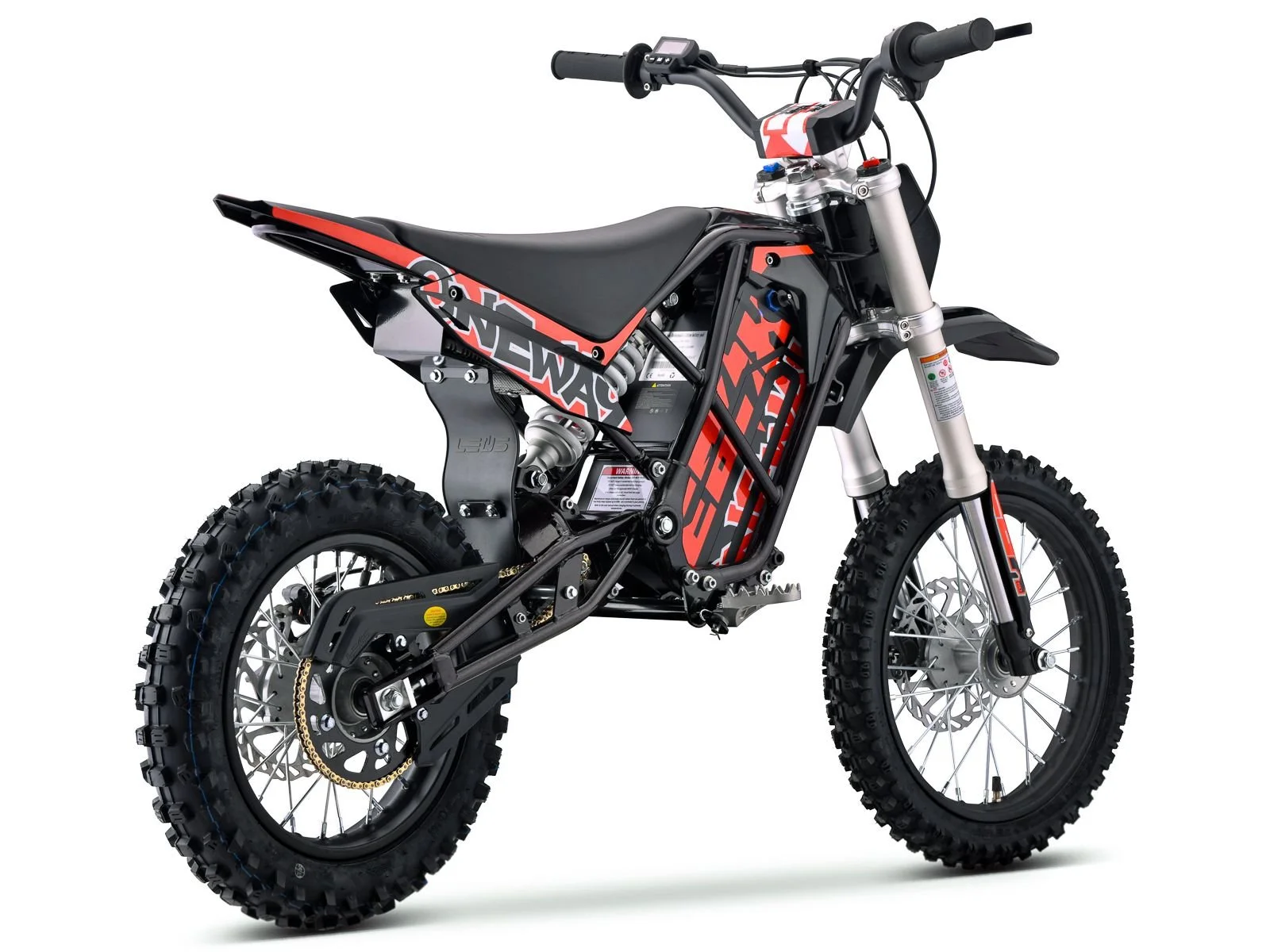

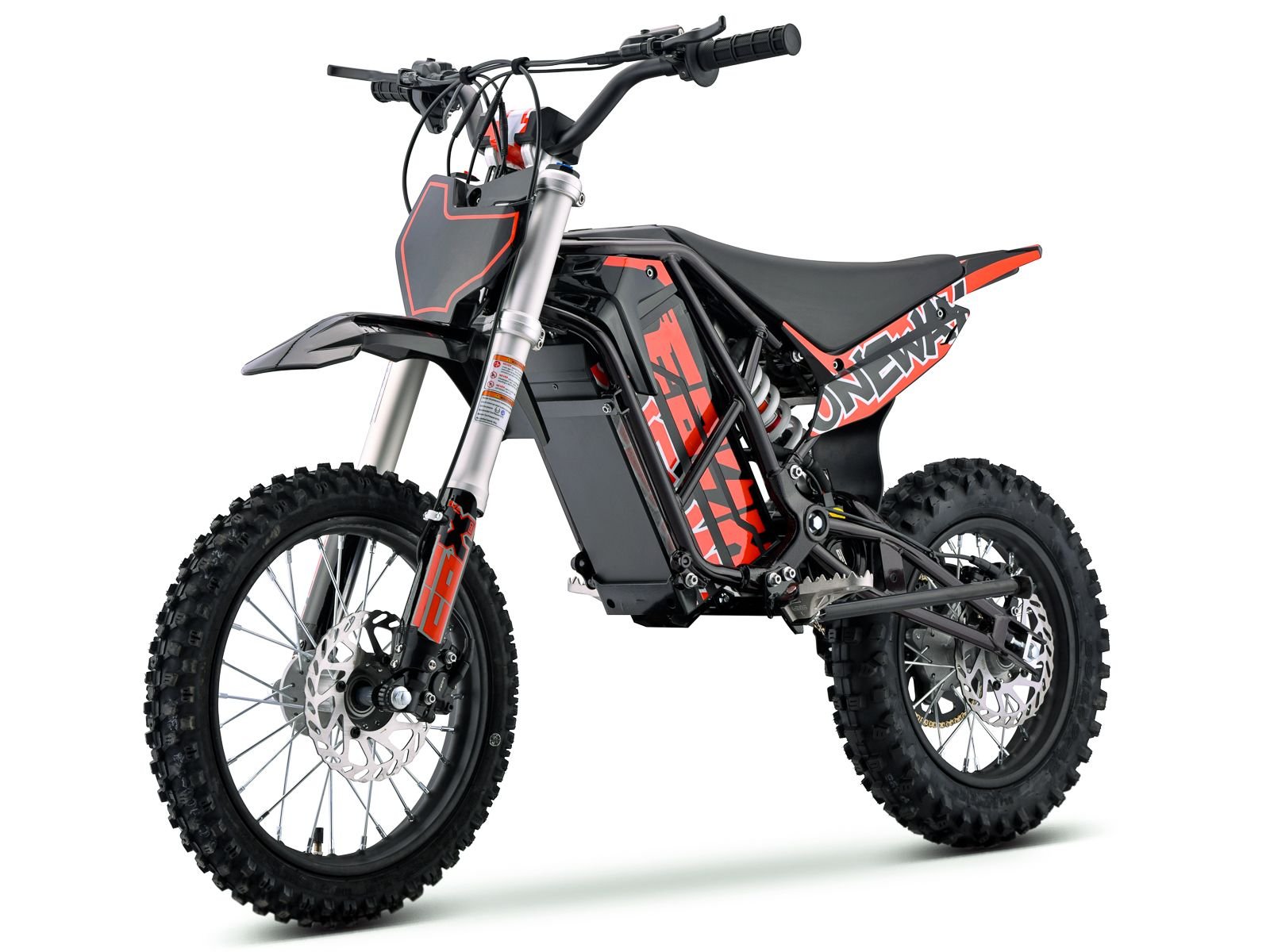

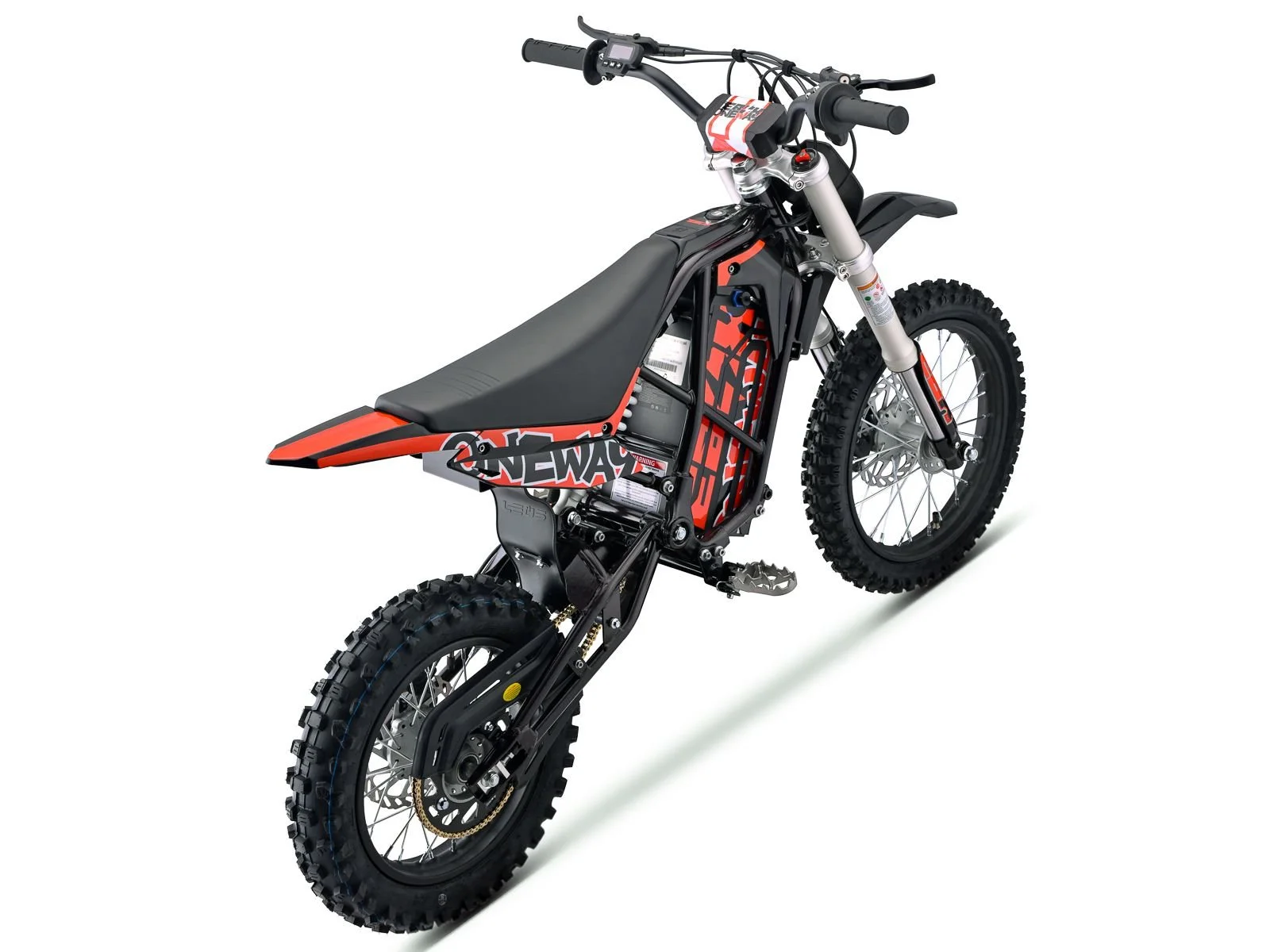

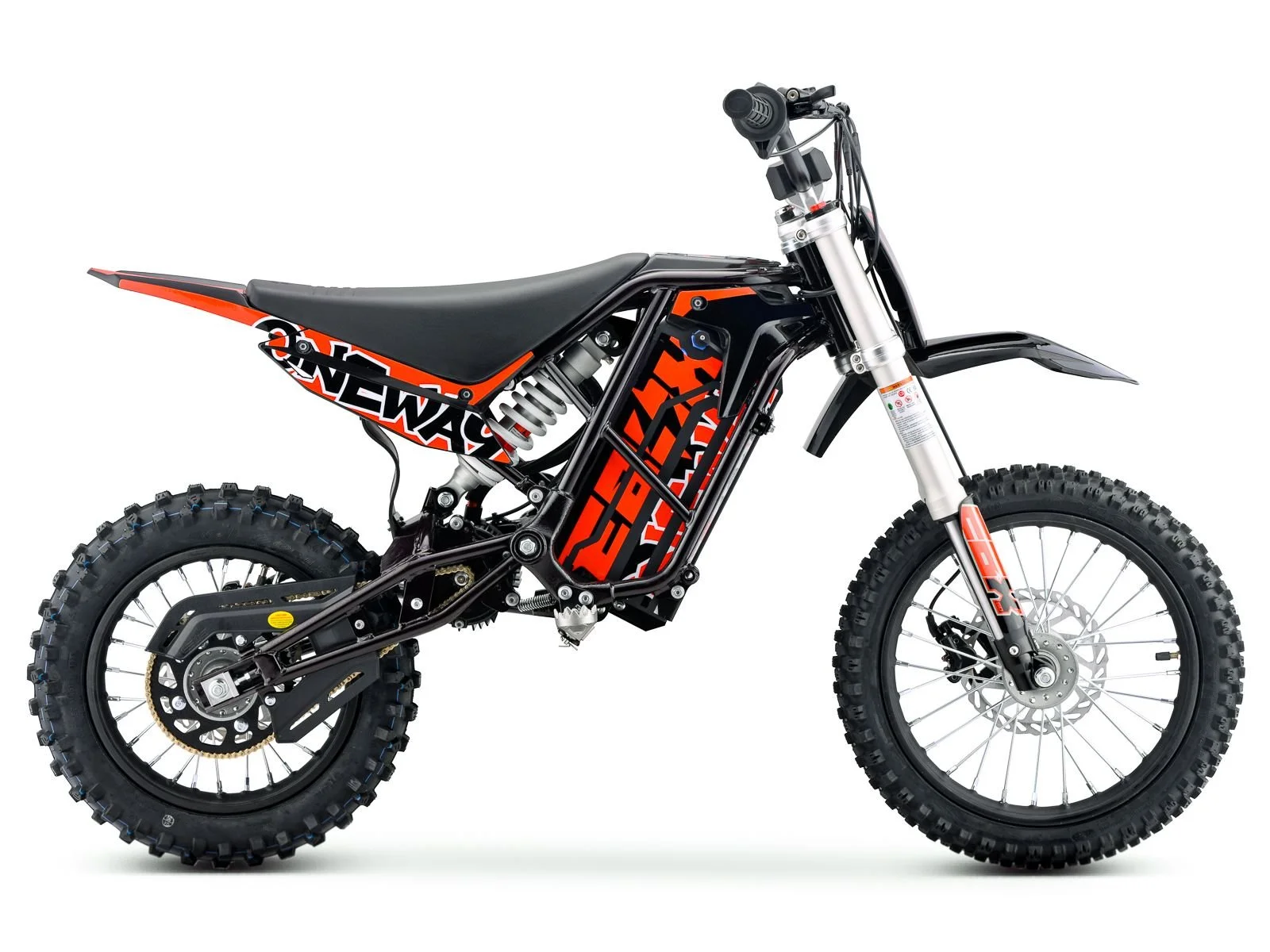

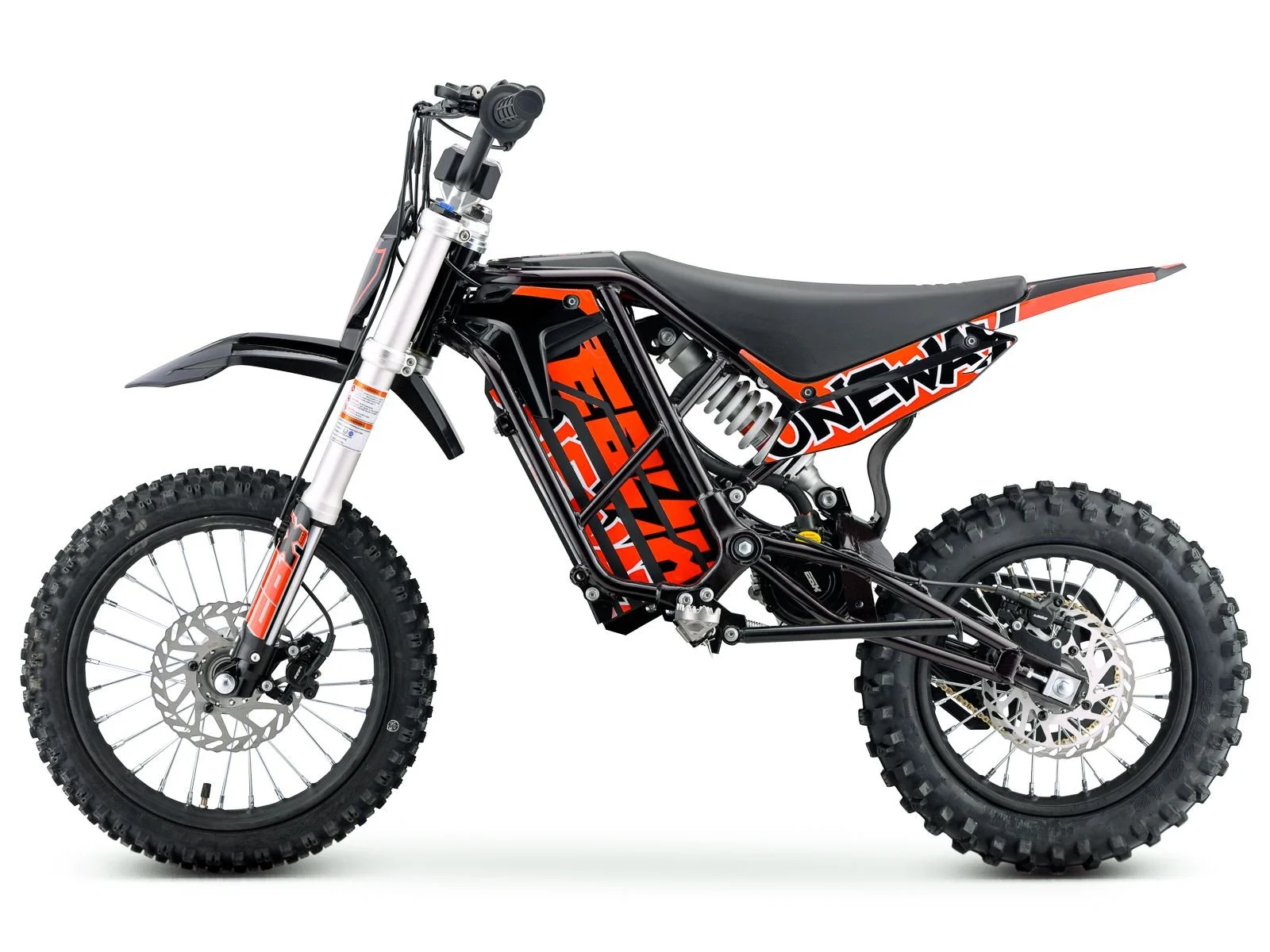

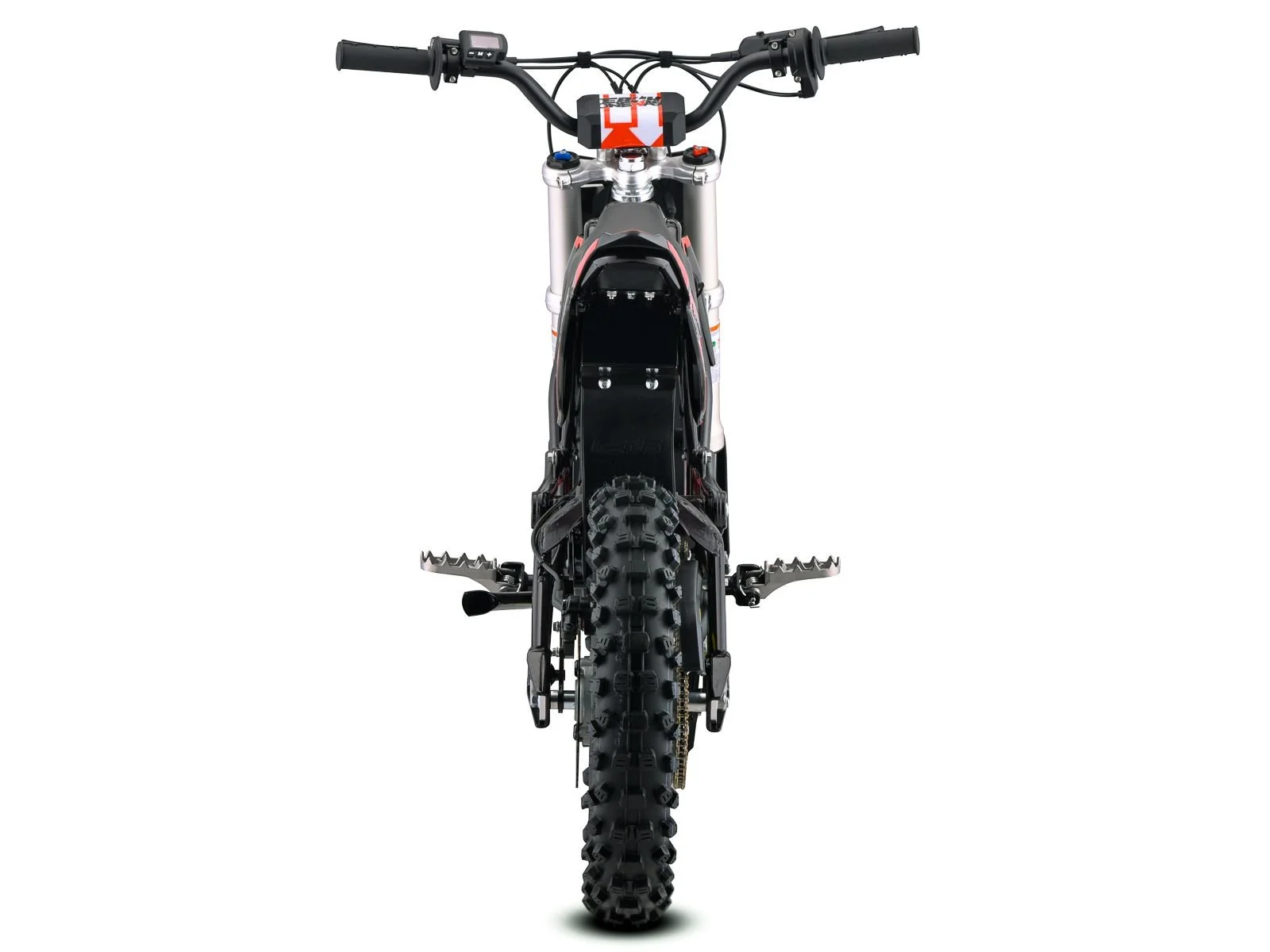

*NEW* EBOX 60R
*NEW* EBOX 60R
EBOX V3 has finally arrived! You wanted more power, more punch, more range, more control and a higher top speed?? We listened to you, and we delivered all of that and more, featuring the brand new EBX powertrain! Bigger batteries, a Fardriver 80A controller and a high power PMSM motor with encoder and temperature feedback with up to 6.3kW. There are no hall sensors to fail and the precise control of the encoder, provides laser sharp coil firing for increased efficiency and maximum performance. Added to that we have included a colour TFT display with 3-speed modes and fault-finding capability. Our warranty has been increased to 1 year, (or 1000 miles) on all powertrain components (battery, controller, motor). What does this mean? Basically, peaking top speeds of up to 55 mph! New colourways, new tyres and all in the same mini package you can throw in the trunk of your car…
SpecificationDetails
Frame typeV3 Double Cradle
Front wheel size14"
Rear wheel size12"
Fork150mm travel USD
Rear SuspensionProgressive mono shock 150mm travel
Bar RisersAlloy Cast 36mm rise Ø22.2
Front brakeHydraulic Disc (Right lever) e-moto brakes
Front disc180mm rotor, 4 bolt
Rear brakeHydraulic Disc (Left lever) e-moto brakes
Rear disc180mm rotor, 4 bolt
Front tyreUpgraded 60/100-14 Dirt
Rear tyreUpgraded 80/100-12 Dirt
Chain219H 120L
GearingFront 10T, Rear 70T
Max load85kg
Handlebar6061 T6 EBOX High Rise 1pc
SeatEBOX fat seat
Motor60V EBX PMSM motor with temp feedback and encoder
Rated Power4.5KW
Peak power5.2KW (6.7hp)
Max RPM8,500
BatteryNew 60v 26 Ah battery with BMS 18,600 Cells potted in steel case with QS8 connector and air breaker switch
Controller80 Amp Fardriver controller
ThrottleSURRON style full twist
DisplayTFT odometer display with 3 speed modes and fault code analysis software
ConnectorsAutomotive connectors with sealed wiring harness
ChargerAC 100-240V, Output: 67.2V, 5A
