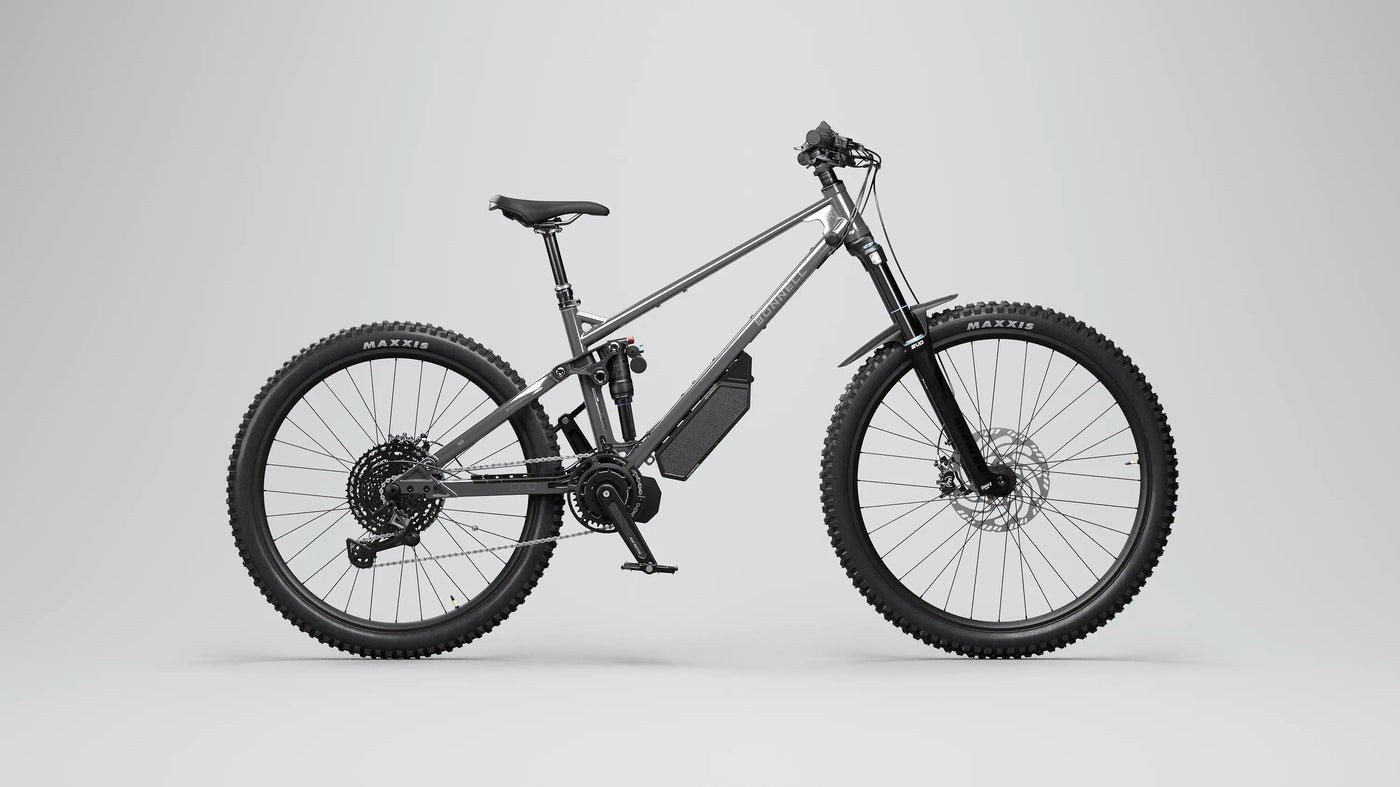

775 AM (Pre-order)
775 AM (Pre-order)
The 775 AM isn’t just a bike, it’s a shapeshifter. Built for every kind of rider—from first-timers to full-on trail junkies—it combines modern geometry with modular design and progressive suspension to handle any terrain you throw at it.
Battery: 520Wh A-Series Quick-Connect (780Wh upgrade available)
Peak Power: 1,200W
Torque: 110 Nm
Range: 18–44 miles (30–70 km), depending on conditions
Weight: 55 lbs (25 kg)
Battery Features: Lockable, USB-C port, built-in safety switch, BMS, waterproof casing
Front Fork: Suntour Durolux 36x/38x, 160mm travel

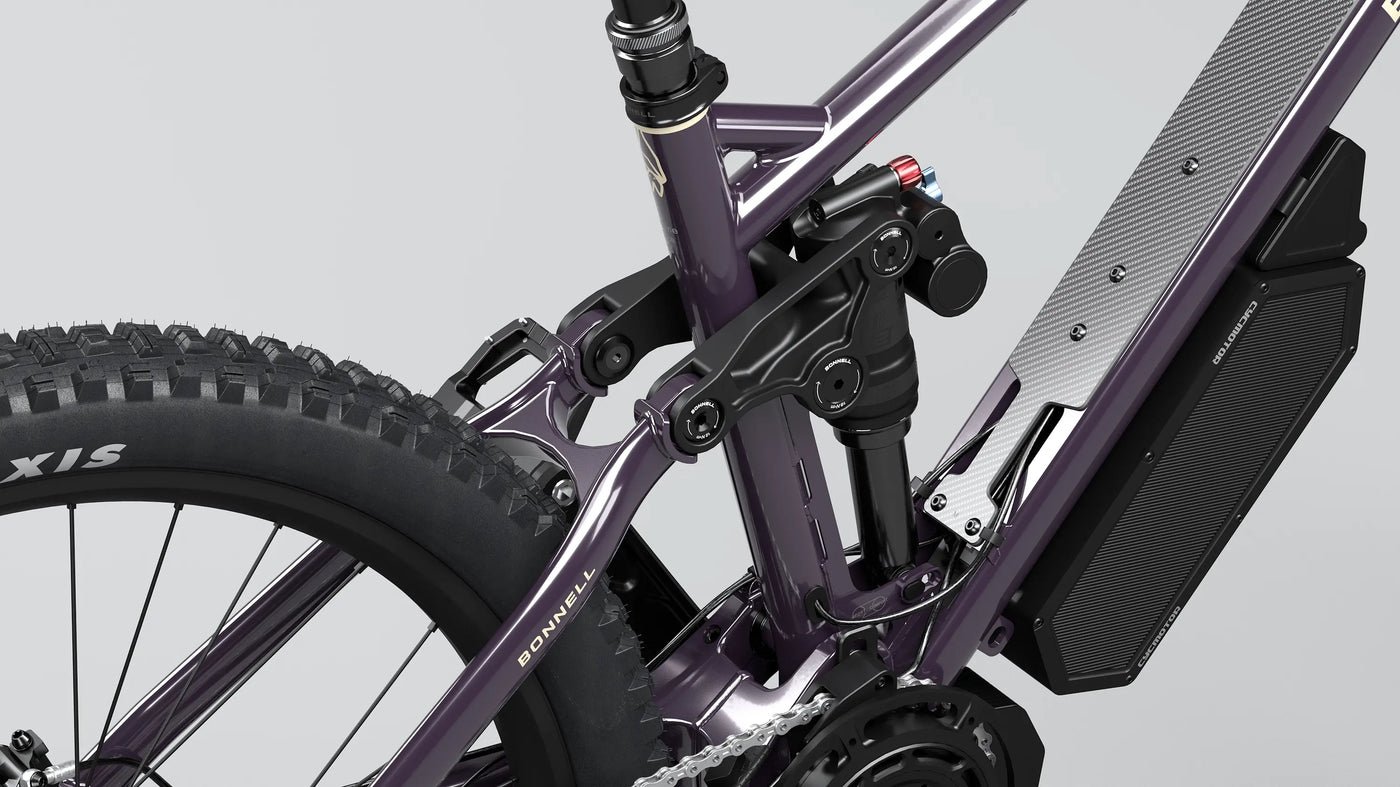

Rear Shock: TriAir 3CR, 150mm travel
Dropouts: Adjustable
Bearings: Sealed
Weight: 55 lbs (25 kg)

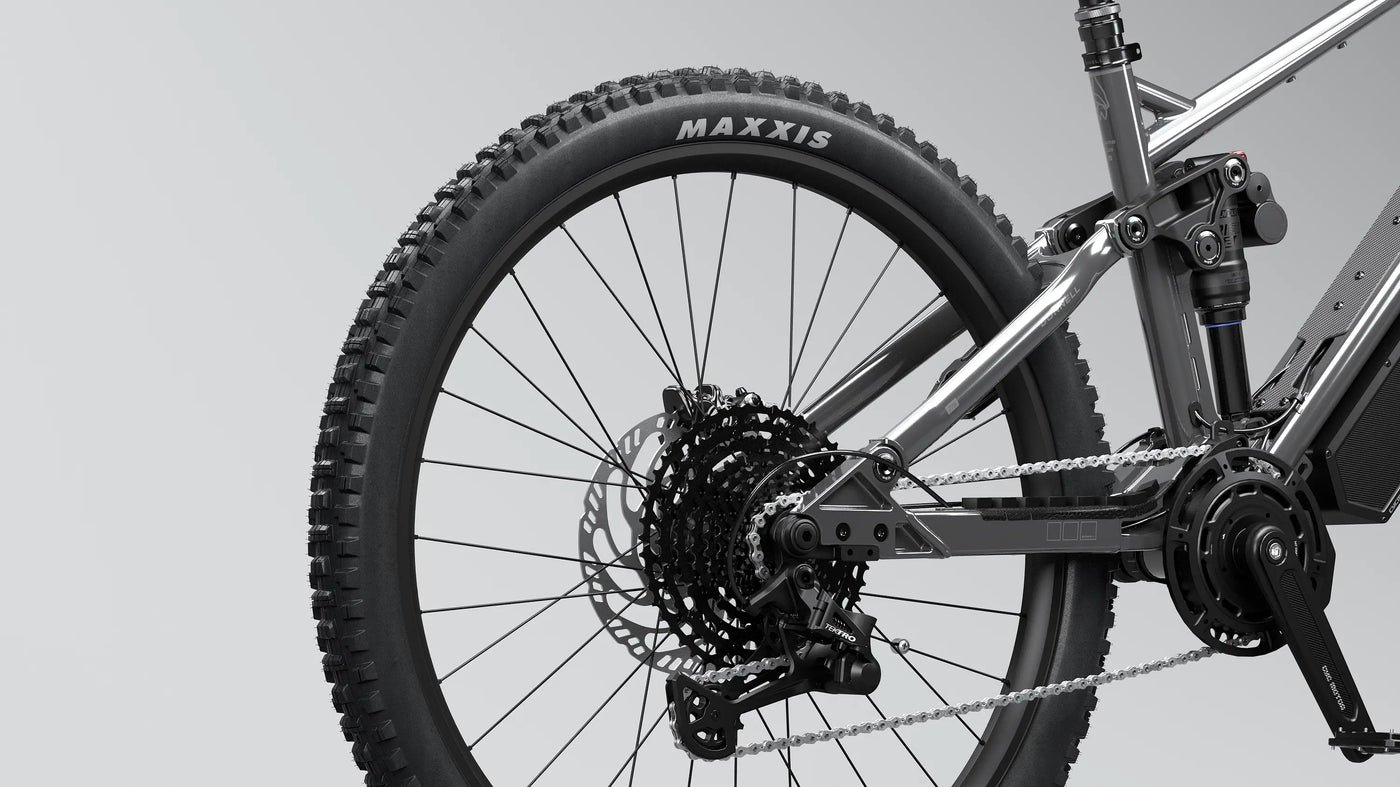

Wheelset: Mullet configuration (front 29", rear 27.5")
Tires: Maxxis Minion DHF
Display: Intuition Display (real-time metrics, Apple AirTag support)
Connectivity: Bluetooth
App: Bonnell Ride Control App
Ride Modes: Class 2 (throttle up to 20 mph), Class 3 (PAS up to 28 mph)
Throttle: On-demand (disabled in Class 3 mode)
Brakes: Not specified (likely hydraulic based on tier)
Performance Features: Torque sensor, modular design
Frame Material: 4130 chromoly front triangle, 6061 aluminum rear
Finish: Anti-rust ED coating
Recommended Rider Height:
S: ~5'3" – 5'7"
M: ~5'7" – 5'10"
L: ~5'10" – 6'2"
XL: ~6'2" – 6'8"
*Class 3 mode disables throttle. Always follow local e-bike regulations.
