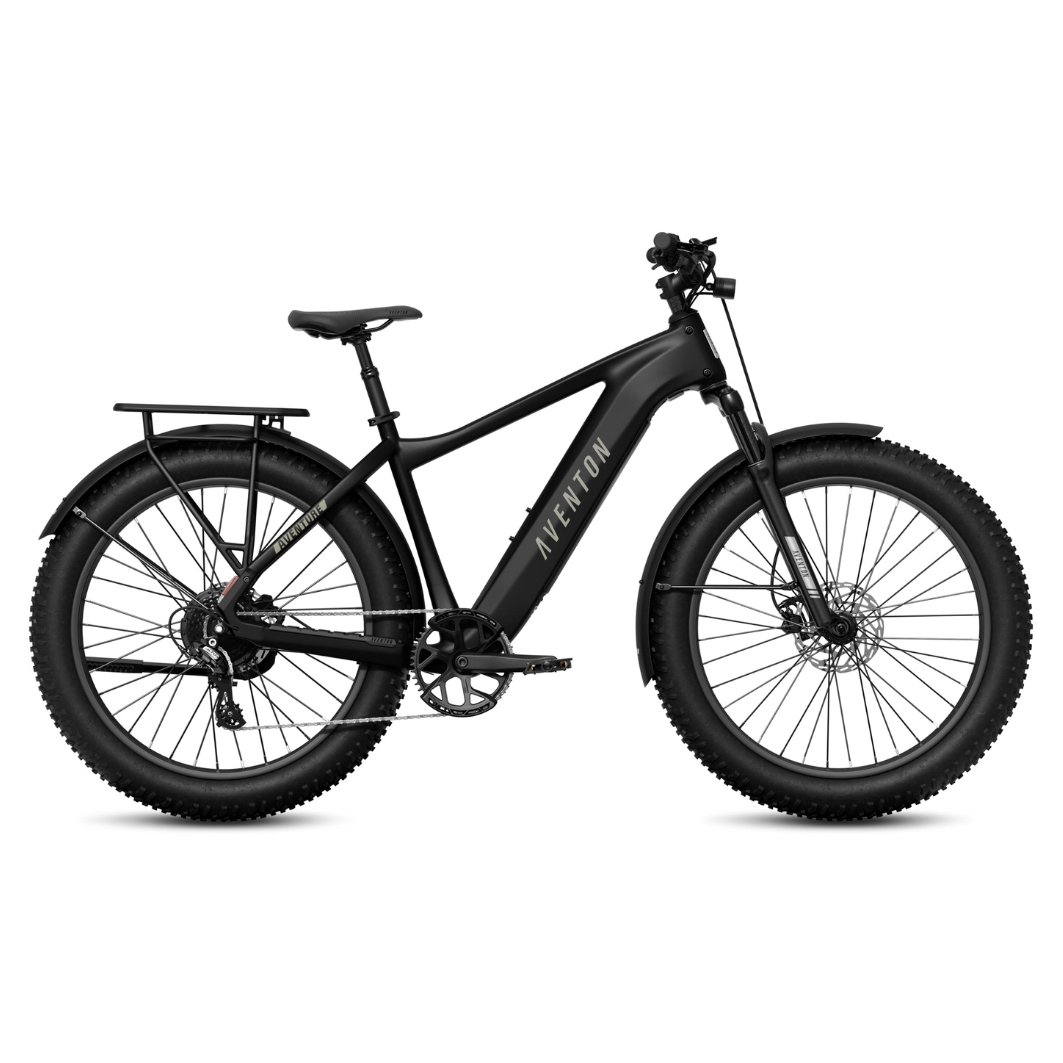

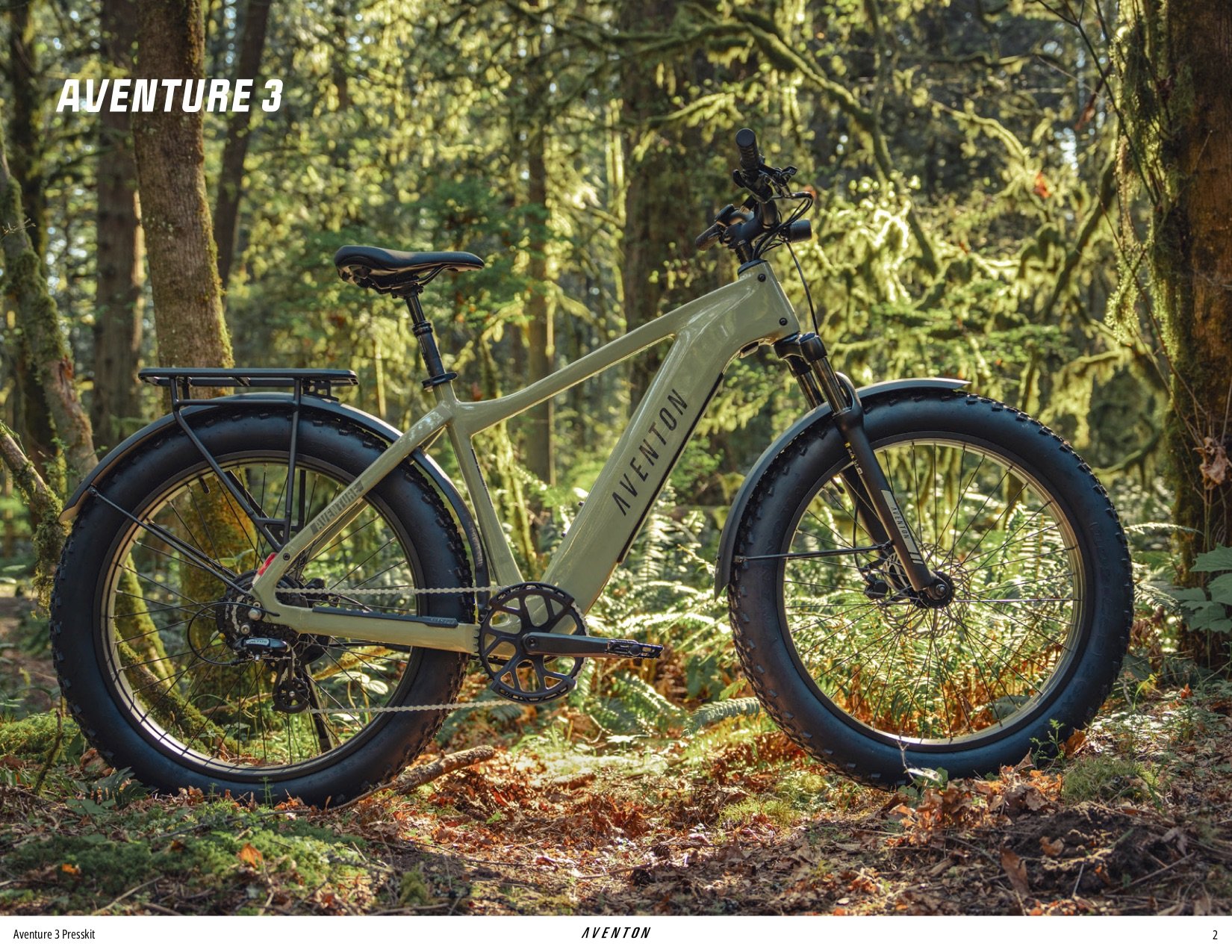

Aventure 3

Sale Price: $2,350.00 Original Price: $2,450.00

Built for adventure on and off the pavement, the Aventon Aventure 3 combines confident fat-tire traction, front suspension, and powerful electric assistance in a versatile all-terrain eBike. Available in both step-through and step-over frames, it’s ready for everything from everyday rides around town to exploring Hawaii’s rougher roads and trails.

Availability: Select colors and sizes are stocked in-store. Other options are available to order and typically arrive at our shop within 2 weeks. Contact us to confirm current in-store availability.

Frame:
Size:
Color:

Built for adventure on and off the pavement, the Aventon Aventure 3 combines confident fat-tire traction, front suspension, and powerful electric assistance in a versatile all-terrain eBike. Available in both step-through and step-over frames, it’s ready for everything from everyday rides around town to exploring Hawaii’s rougher roads and trails.

Availability: Select colors and sizes are stocked in-store. Other options are available to order and typically arrive at our shop within 2 weeks. Contact us to confirm current in-store availability.

Description

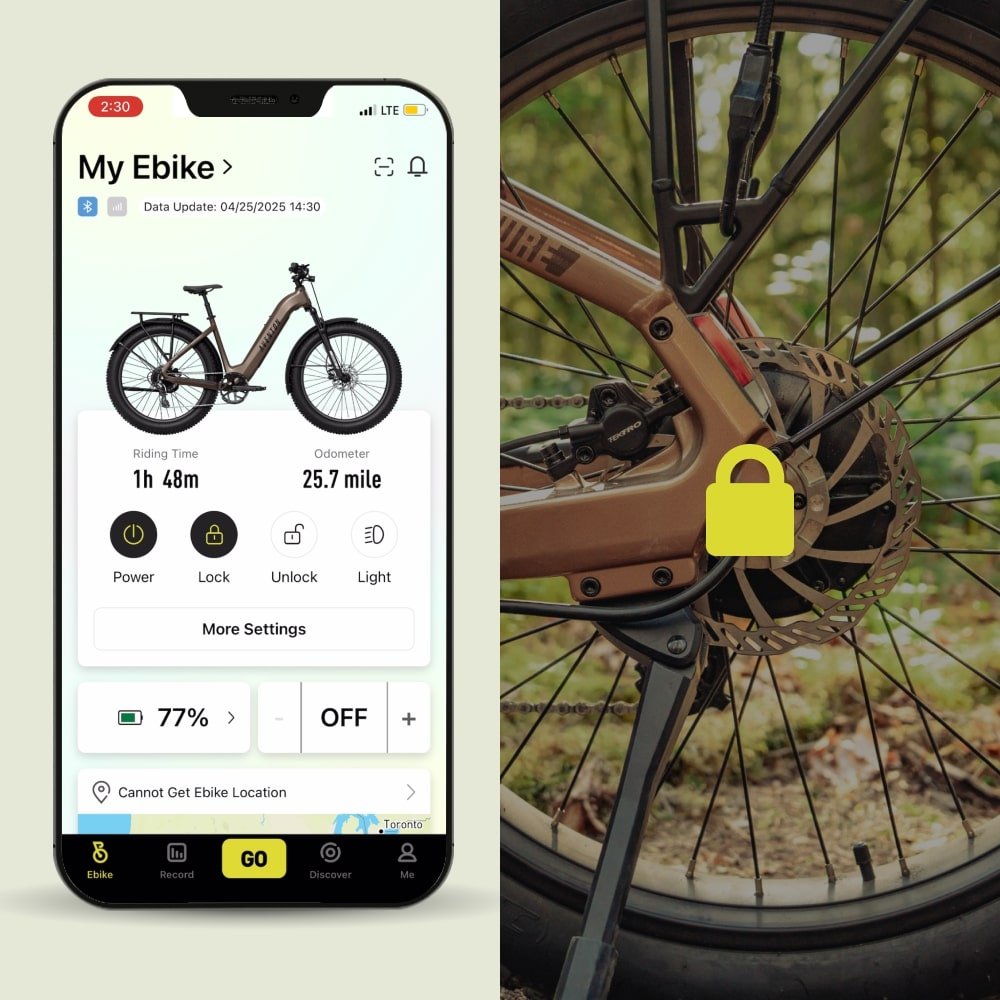

Embrace the all-terrain with the Aventrure 3, our electric fat-tire bike that combines rugged performance with cutting-edge technology. Featuring 4" fat tires, a suspension fork, and a suspension seatpost, the Aventure 3 is built to easily navigate any terrain. Equipped with ACU Smart Bike technology, which includes 4G†/GPS† capabilities and advanced anti-theft features, the Aventure 3 keeps you connected and your bike secure. Its powerful 750W motor (with 1440W peak power in boost mode), 65 miles of range, and Ride Tune customization ensures you can get where you want, how you want. No matter where you want to explore, the Aventure is ready to take on the challenge.

Whether you’re cruising around town, tackling rough roads, or heading off the pavement for a weekend adventure, the Aventure 3 is built to handle it all with confidence. Its comfortable, stable ride and all-terrain capability make it a great choice for Hawaii riders looking for one eBike that can transition easily from everyday transportation to exploring beyond the usual route. Available in both step-through and step-over frames, the Aventure 3 makes it easy to find the right fit for the way you ride.

Specifications

General Info
Weight
Step-Through: 77 lbs
Step-Over: 76 lbs
Total Weight Limit
400 lbs
Rider Height
Step-Through: R: 4'11"–5'7" | L: 5'7"–6'1"
Step-Over: R: 5'3"–5'10" | L: 5'10"–6'4"
Ebike Class
Class 2 Ebike
Range
Up to 65 miles
Battery Safety Certifications
Certified to UL 2271
Ideal Use
All-Terrain
E-Bike System
Speed
Class 2
Motor
36V, 750W Hub Drive
Motor Torque
80Nm
Motor Power
750W (1440W under Boost Mode)
Display
Aventon BC280
Battery
Removable Internal Lithium-ion, 36V, 20Ah, 733Wh, LG 21700 cells
Battery Weight
8.7 lbs
Controller
36V, 33A
Throttle
Aventon LH Handlebar Mounted
Sensors
Double Sided Bottom Bracket Torque Sensor
Charger
36V Output: 42V / 4A
Charging Time From 0% to 100%
5 hours
Lights
Front and rear lights integrated
Frameset
Frame
6061 Aluminum, Gravity Cast Front Triangle
Fork
Aventon/Zoom Suspension Fork, 80mm travel, with lockout
Rear Spacing
190mm
Fork Spacing
135mm
Frame Style
Step-Through or Step-Over
Wheelset
Front Wheel
26", 36 hole, 13g, Double Wall Aluminum Fat Tire Rim, Nutted Axle, Schrader Valve
Rear Wheel
26", 36 hole, 12g, Double Wall Aluminum Fat Tire Rim, Nutted Hub Drive, Schrader Valve
Tires
Innova 26x4.0 puncture resistant
Brakes
Front Brake
Tektro HD-E3520 hydraulic disc brakes w/ E11 quick disconnect wire
Rear Brake
Tektro HD-E3520 hydraulic disc brakes w/ E11 quick disconnect wire
Front Brake Rotor
Tektro 180mm 6 bolt
Rear Brake Rotor
Tektro 180mm 6 bolt
Drivetrain
Rear Derailleur
Shimano Altus 8-Speed
Shifter
Shimano 8-Speed Trigger
Chain
7/8 Speed 118L
Cassette
12-32T / 8 Speed Shimano CS HG200-8
Chainring
48T
Chainring BCD
N/A
Crankset
3pc, 170mm crank arm
Bottom Bracket
100x177 Square Taper, Double Sided Torque Sensor bottom bracket
Pedals
9/16" Alloy Platform
Cockpit
Saddle
Aventon Saddle
Seatpost
Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length, 50mm travel
Seatpost Clamp
34.9mm
Handlebars
Aluminum 31.8mm, 680mm
Grips
Aventon Lock on grips
Headset
Sealed bearing H887 Pellin 28.6mm * 56mm * 56mm H18.6mm 7pcs
Included Accessories
Kickstand
Included, rear mount
Rear Rack
Included
Fenders
Included

Aventon Aventure 3 Geometry

Select a frame style below to view the corresponding geometry and rider size recommendations.

Frame Size
Regular
Large
A — Seat Tube Length
440mm (17")
500mm (19")
B — Top Tube Length Horizontal
605.5mm (23")
643.5mm (25")
C — Bottom Bracket Drop
65mm (2")
65mm (2")
D — Head Tube Length
140mm (5")
140mm (5")
E — Head Tube Angle
67°
67°
F — Seat Tube Angle
72°
72°
G — Rear Chainstay Length
470mm (18")
470mm (18")
H — Front Wheel Center
693.6mm (27")
731.5mm (28")
I — Wheelbase
1156.1mm (45")
1194.1mm (47")
J — Reach
390mm (15")
428mm (16")
K — Stack Height
663.1mm (26")
663.1mm (26")
L — Fork Length
525mm (20")
525mm (20")
M — Fork Offset
43mm (1")
43mm (1")
N — Trail
102.5mm (4")
102.5mm (4")
Wheel Size
26" x 4.0"
26" x 4.0"

Rider Size Guide

Regular 5'3"–5'10" 160–175cm
Large 5'10"–6'4" 175–195cm
